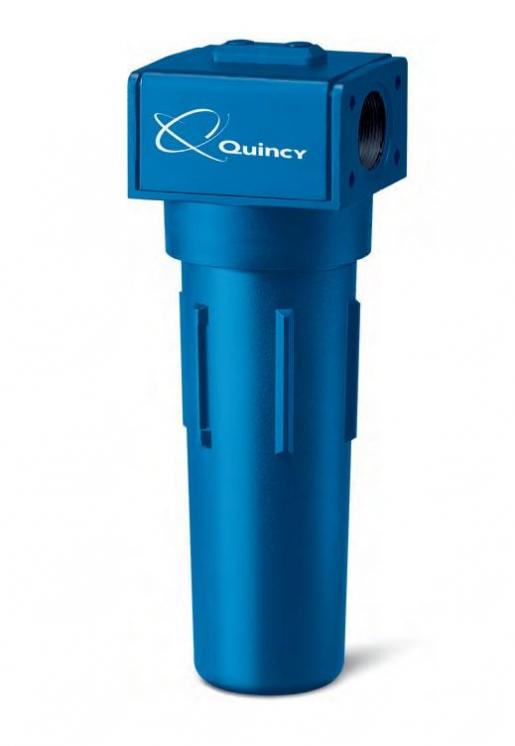

The Quincy HTD high temperature filters are designed to remove solid particles from high temperature compressed air. These filters remove particles down to 5 microns and 5ppm at 450 degrees F.
| Model | Capacity (SCFM) | Housing Material | Connection Size | Maximum Pressure (PSIG) |
|---|---|---|---|---|
| HTDT00025 | 25 | Aluminum | 1/4 Inch NPT | 150 |
| HTDT00030 | 30 | Aluminum | 3/8 Inch NPT | 150 |
| HTDT00065 | 65 | Aluminum | 1/2 Inch NPT | 150 |
| HTDT00075 | 75 | Aluminum | 3/4 Inch NPT | 150 |
| HTDT00150 | 150 | Aluminum | 1 Inch NPT | 150 |
| HTDT00300 | 300 | Aluminum | 1 1/2 Inch NPT | 150 |
| HTDT00450 | 450 | Aluminum | 2 Inch NPT | 150 |
| HTDT00650 | 650 | Aluminum | 2 Inch NPT | 150 |
| HTDF01503 | 1500 | Steel | 3' Flange | 150 |
| HTDF01504 | 1500 | Steel | 4' Flange | 150 |
| HTDF02004 | 2000 | Steel | 4' Flange | 150 |
| HTDF02006 | 2000 | Steel | 6' Flange | 150 |
| HTDF03004 | 3000 | Steel | 4' Flange | 150 |
| HTDF03006 | 3000 | Steel | 6' Flange | 150 |
| HTDF04506 | 4500 | Steel | 6' Flange | 150 |
| HTDF06008 | 6000 | Steel | 8' Flange | 150 |
| HTDF10510 | 10500 | Steel | 10' Flange | 150 |
| HTDF16512 | 16500 | Steel | 12' Flange | 150 |
